Feel the Satisfaction of X Series Performance

NSK X series contra-angles feature the advanced technology combined with elegant yet ergonomic design. X series contra-angles have been designed without compromise paying attention to every last detail. Better possible access to the operating field and maximum visibility were the most important criteria during the design process of the instrument body. Unrivaled reliability and superior operator and patient comfort reflect all the expertise which has been built into each and every model of the NSK Ti-Max X Series.

Technology & Function

  • Excellent Stability
    Excellent Stability

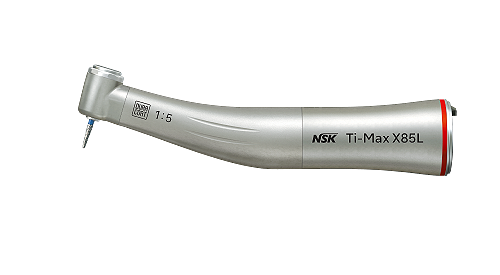

    Ceramic Bearings are 25% harder than conventional steel bearings but are only half the weight. Because frictional wear between the ball bearings and the bearing retainer is significantly reduced the efficiency and durability is significantly increased. (X95L / X85L)

  • Microfilter
    Microfilter

    Microfilter to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times.

  • Clean Head System
    Clean Head System

    The Clean Head System has an anti-suck back mechanism that stops blood and foreign matter from entering the head from the oral cavity. As a result, the ball bearings and mechanical parts last longer.

  • Titanium Body
    Titanium Body

    Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals.
    *Titanium is used only for the exterior parts, and not for the interior.

  • Quattro Water Spray
    Quattro Water Spray

    The NSK Quattro Water Spray effectively cools the entire surface of the bur with a high cooling effect, leaving no areas untreated.

  • DURACOAT
    DURACOAT

    NSK's latest surface enhancement technology, takes advantage of the non allergic and biocompatible properties of titanium to further improve durability. DURACOAT creates a smooth, scratch resistant surface which is comfortable to hold.

  • Single Water Spray
    Single Water Spray

    The NSK Single Water Spray effectively cools the surface of the bur with a high cooling effect. (With X65L)

General Applications

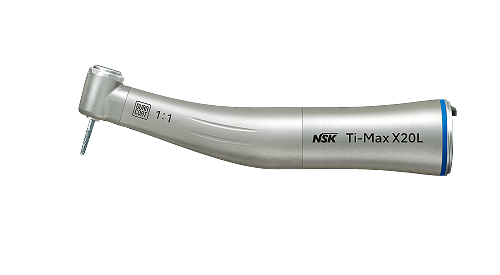

X20L1:1

  • General Applications/X20L
    • Optic
    • Model:X20L
    • Order Code:C605

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

Straight Handpieces

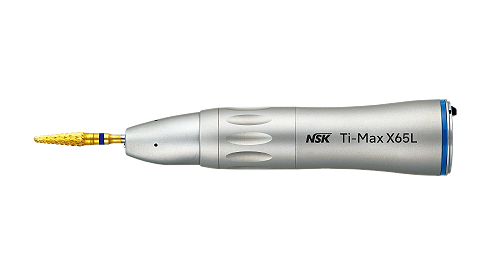

X65L1:1

  • Straight Handpieces/X65L
    • Optic
    • Model:X65L
    • Order Code:H273

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35) / CA Burs (Ø2.35)*
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    * Need to insert the supplied bur stopper

    Features

    • Cellular Glass Optics
    • Clean Head System
