Maintaining handpieces can be as simple as touching a button. The appropriate lubrication is applied according to the type of handpiece selected. The chuck-lubricating function allows the dentist to effectively lubricate the chuck.
Regular maintenance extends the operating life and the optimal condition of the handpiece.
The solution for handpiece care is iCare.
• Preset lubricant volume based on handpiece type
• Handpiece lubrication and excessive lubricant purge with simple operation
• The chuck-lubricating function maintains the internal condition of the chuck appropriately to prevent loss of the chuck retention force.
• Low lubricant cost per handpiece provides a lower lifetime operating cost
• Stylish & compact body that can be installed with limited space

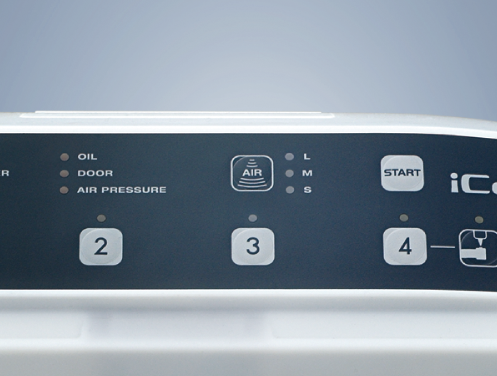

Handpiece lubrication and excessive lubricant purge are performed by simply pressing the buttons. Simple operation is achieved by preset lubricant volumes for high speed and low speed handpiece.
The chuck-lubricating function maintains the internal condition of the chuck appropriately to prevent loss of the chuck retention force.
Since iCare is equipped with a large tank (1.2L capacity), making refilling the tank one easy step and eliminates the possibility of spills and need to store excess lubricant.
Air mode can be adjusted to 3 different pre-set selections according to usage*.
*Typical setting is M
*Air Turbine Connector connects only to ISO 9168 Type2 / Type3
*E-type Handpiece Connector connects to all coupling demension of ISO 3964 (Long, Middle, Short, Extra Short)
*Air piping is necessary 0.5-0.6 MPa (5.0 - 6.0 kgf/cm2)
|For NSK Air-driven Handpieces for NSK Phatelus / Mach Coupler
|For KaVo® Air-driven Handpieces for Multiflex® LUX Coupler
|For Sirona® Air-driven Handpieces for Quick Coupler
|For W&H® Air-driven Handpieces for Roto Quick Coupler (RQ Type)
|For W&H® Air-driven Handpieces for Roto Quick Coupler (RA Type)
|For Bien-Air® Air-driven Handpieces for Unifix® Coupler
|For MIDWEST® Air-driven Handpieces for 5-Hole Coupler
|For StarDental® Air-driven Handpieces for HiFlo® Fiber-Optic Swivel (4-Hole F.O.) Coupler
|For ENDO-MATE TC2, DT Heads
Check with the dealer for the adaptors to mount other manufactures’ handpieces.
